Complex supply ship
Project 1833 Pegas

NATO: Berezina Class


Completed

1 unit


Ships

«Shipyard named after 61 kommunara», Nikolaev

Name
Yard ¹
Laid Down
Launched
Commissioned
Note
Berezina
¹2101
18.08.1972
20.04.1975
30.12.1977


General characteristics - Project 1833

Displacement (tons):
Standard:15460
Full load:24565
Dimensions (m):
Length:209,84
Beam:25,1
Draft:7,7
Speed (knots):21,87
Range: 9180 nmi (18 knots)
Autonomy (days):90
Propulsion:2x16500 hp T-1 gas turbine (15000 hp M-24, 1500 hp PTU), 2 fixed pitch propeller, 2x1500 kW diesel generators
Armament:1x2 ZIF-122 «Osa-M» SAM system launcher (20 9M33 missiles) – 4R-33 fire control system
2x2 57 mm AK-725 (4200 rounds) – MR-103 «Bars» fire control system
4x6 30 mm AK-630M (16000 rounds) – 2 MR-123 «Vympel-A» fire control systems
2x6 RBU-1000 «Smerch-1» (84 RGB-10) – «Burya-1833» fire control system
2 Ka-25 helicopters
Electronics: MR-302 «Rubka» air/surface search radar, 2 «Volga» navigation radars, «Don» navigation radar, «Kremniy-2M» and «Nickel-KM» and «Khrom-KM» IFF, MP-401 «Start» complex, «Rumb» radio direction finder, MG-312I sonar, MG-26 «Khosta» underwater communication system, MI-110K anti-submarine search station
PK-2 decoy RL (2 ZIF-121 launchers) – 280 rounds – «Tertsiya-1833» control system
Capacity (tons):5615
Complement:389 (46 officers) + 178 passengers

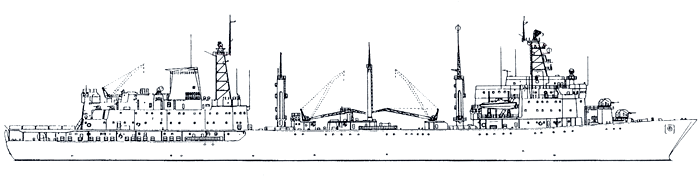

Schematics

Complex supply ship - Project 1833
Complex supply ship - Project 1833


Modernizations

Seagoing armament transport – from 1.12.1996: all armament was removed


Fleets

Black Sea Fleet: Berezina


Hull Numbers

Berezina: 150(1977), 158(1979), 155(1979), 196(1981), 157(1985), 156(1986), 153(1988), 154(1990)


Decommissioned

2002 – Berezina (march)


Export

---
