Large hydrographic survey boats
Project 19920 Baklan
Project 19920B

NATO: --- Class


Completed

9 + 4 units


Ships

Project 19920 - 5+3 units

Наименование
Заводской
Заложено
Спущено на воду
Вступление в строй
Примечание
"Vympel", Rybinsk - 5+2 units
BGK-2090
№01841
27.06.2004
15.05.2008
27.12.2008

BGK-2148
№01842
-
31.08.2012
25.11.2012
from 26.07.2017 - Nikolay Timoshenko
BGK-2149
№01843
-
26.06.2015
12.11.2015
from 13.10.2017 - Evgeniy Gnitsevich
BGK-2150
№01844
14.05.2014
5.07.2016
21.11.2016
from 2017 - Yuriy Belov
BGK-2154
№01845
26.06.2015
2.09.2016
24.11.2016
from 05.2017 - Vsevolod Vorobyov
BGK-
№01846
-
-
-
under construction
BGK-
№01847
-
-
-
under construction
JSC "Okskaya Shipyard", Navashino – 0+1 unit
Alexandr Makorta
-
-
31.05.2018
plan 2020
under construction

Project 19920B - Shipyard named after October revolution, Blagoveshchensk - 4+1 units

Name
Yard №
Laid Down
Launched
Commissioned
Note
BGK-797
№701
17.10.2006
17.07.2008
17.06.2009
then - Yuriy Trofimov
BGK-2151
№702
03.2012
2013
2014

BGK-2152
№703
2013
3.06.2014
2015

BGK-2153
№704
11.2013
2015
2015

BGK-
№705
-
-
-
under construction

General characteristics - Project 19920

Displacement (tons):
Standard: 279
Full load:320
Dimensions (m):
Length:36,44
Beam:7,8
Draft:2,1
Speed (knots):11,5
Range:1000 nmi (11 knots)
Autonomy (days):10
Propulsion:2x337 hp Deutz BF6M 1015MC diesels, 2 azimuth thrusters, 1 bow thruster, 2x80 kW DGA-80-VA2-MPS diesel-generators (from №01842 – 2x80 kW DGA-80-VA3-MPS diesel-generators)
Electronics:-
Complement:11

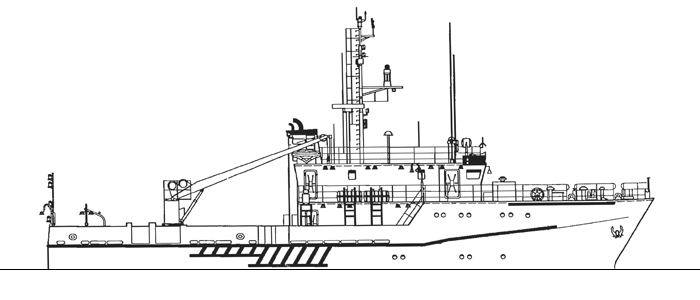

Schematics

Large hydrographic survey boat - Project 19920
Large hydrographic survey boat - Project 19920


Modernizations

Non-realized updatings of the project: Project 19920E – export variant


Fleets

Pacific Fleet: BGK-797, 2151-2153
Northern Fleet: BGK-2148, 2154
Black Sea Fleet: BGK-2150
Caspian Flotilia: BGK-2090


Hull Numbers

---


Decommissioned

---


Export

---
