Guard Ships
Project 11540 Yastreb

NATO: Neustrashimy Class


Completed

2 + 3 units


Ships

Yantar Shipyard, Kaliningrad

Name
Yard ¹
Laid Down
Launched
Commissioned
Note
Neustrashimy
¹401
25.03.1987
25.05.1988
28.12.1990

Nepristupny
¹402
27.05.1988
06.1990
19.07.2009
from 30.08.1995 - Yaroslav Mudry
Tuman
¹403
1993
-
-
under construction
-
¹404
-
-
-
not completed
-
¹405
-
-
-
not completed

General characteristics - Project 11540

Displacement (tons):
Standard:3950
Full load:4350
Dimensions (m):
Length:129,8
Beam:15,6
Draft:4,8
Speed (knots):29
Range:3000 nmi (18 knots)
Autonomy (days):30
Propulsion:2x28500 hp Ì-27 gas-turbines systems (10000 hp M-70 gas-turbine, 18500 hp M-90 forsage gas-turbine), 2 fixed pitch propellers, 2x1250 kW turbine-type generators, 1x600 kW turbine-type generator, 2x600 kW diesel-generators
Armament:2x4 KT-184 3M24 Uran anti-ship missiles launchers - from ¹402
4x1 Kinzhal ZS95 SAM launchers (32 9M330 missiles) – K-12-1 fire control system
1x1 100 mm AK-100 (350 rounds AZ-UZS-58) – MR-145 Lev-218-100 fire control system
2 3M87 Kortik CIWS modules – 2x(8 launchers SAM, 2x6 30 mm) (64 9M311 missiles, 6000 rounds)
1x1 45 mm 21KM
6x1 URPK-6 Vodopad-NK launchers (6 83R, 84R anti-submarine guided missiles) – Onega-11540 fire control system
1x12 RBU-6000 RPK-8 launcher (48 RGB-60 or 90R anti-submarine guided missiles)
2x10 55 mm DP-65 grenade launchers (RG-55M, GRS-55 grenades) – on Yaroslav Mudry
2?x1 12,7 mm NSVT-12,7 Utes – on Yaroslav Mudry
16-20 mines
1 Ka-27 helicopter
Electronics:

MR-750 Fregat-M2 air/surface search radar, MP-405-1 ESM radar system (Nepristupny – TK-25), MR-212 Vaygach navigation radar, MGK-365 Zvezda-M1 sonar complex, Tron-11540 combat information control system, Korall communication complex (Nepristupny), Beysur navigational complex, Tsentavr satellite communication complex (Nepristupny), R-782 Buran communication complex
PK-16 decoy RL (2 KL-101 launchers) – AZ-TST-60, AZ-TSP-60UM (from 1991), AZ-TSTM-60U (from 1994) rounds
PK-10 Smely decoy RL (8 KT-216 launchers) – AZ-SO-50, AZ-SR-50, AZ-SOM-50, AZ-SK-50 (from 1991), AZ-SMZ-50 (from 1993) rounds

Complement:210 (35 officers)

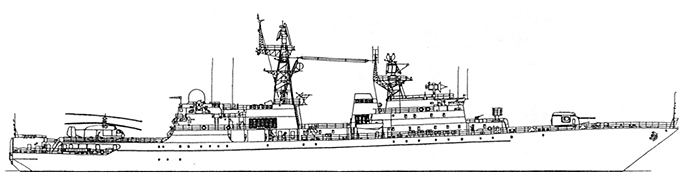

Schematics

Guard Ships - Project 11540
Guard Ships - Project 11540


Modernizations

On Neustrashimy - plan in 2015 to replace MGK-365 Zvezda-M1 sonar complex on Zarya-SK sonar complex
Unrealized modifications: Project 11541 Korsar - export variant


Fleets

Baltic Fleet: Neustrashimy, Yaroslav Mudry


Hull Numbers

Neustrashimy: 712(1990), 772(2017)
Yaroslav Mudry: 727(2009), 777(2016)


Decommissioned

---


Export

---
