Air-Cavity Landing Craft
Project 11770 Serna
Project 11771

NATO: Serna Class


Completed

15 + 2 units


Ships

Project 11770 - 11 + 2 units

Name
Yard ¹
Laid Down
Launched
Commissioned
Note
Volga, Nizhniy Novgorod - 11 units
D-67
¹801
1.07.1993
21.06.1994
30.12.1994

D-156
¹802
-
-
29.12.1999

D-131
¹803
1994
-
30.12.2002

D-172
¹804
-
-
27.12.2005

D-144
¹805
-
-
19.02.2008

D-56
¹806
-
-
30.12.2008
from 2023 - Alexey Sukhanov
D-1441
¹807
-
-
26.12.2009
from 2018? - Alexey Barinov
D-1442
¹808
-
-
26.12.2009
from 2018? - Ivan Pasko
D-178?
¹809
-
-
10.07.2012
from 24.04.2023 - D-178 Yury Kukushkin?
D-179?
¹810
-
2012
29.05.2013
from 2023 - Zaur Omarov?
D-199
¹811?
-
2012
4.08.2014

Azov Shipyard - 0+1 unit
D-
-
-
-
-
under construction
Vostochnaya Verf, Vladivostok - 1 unit
D-107
¹3001
11.12.2008
15.04.2010
4.06.2010
from 13.02.2023 - D-107 Andrey Ivanov

Project 11771 - Volga, Nizhniy Novgorod - 4 units

Name
Yard ¹
Laid Down
Launched
Commissioned
Note
D-
¹501
-
1992?
1994

D-
¹502
-
-
1994

D-
¹503
-
-
1994

D-
¹504
-
-
1995


General characteristics - Project 11770

Displacement (tons):
Standard:61
Full load:99,7 (Project 11771 – 100,05)
Dimensions (m):
Length:25,65
Beam:5,66
Draft:1,52
Speed (knots):35
Range:600 nmi (12 knots), 100 nmi (30 knots)
Autonomy (days):1
Propulsion:2x3300 hp M-503A-3 diesels (¹807-811 – 2x2000 hp MTU16V2000M90 diesels), 2x16 kW DG-16/1500 diesel generators (Project 11771 – 2x16 kW DGR1A16/1500 OM4 diesel generators)
Armament:-
Electronics: Pal-N-3 navigation radar, MR-231-2 navigation radar (D-1441)
Capacity:1 main battle tank or 2 BTR or 92 troops or 50 tons of cargo
Complement:5 (2 warrant officers)

Schematics

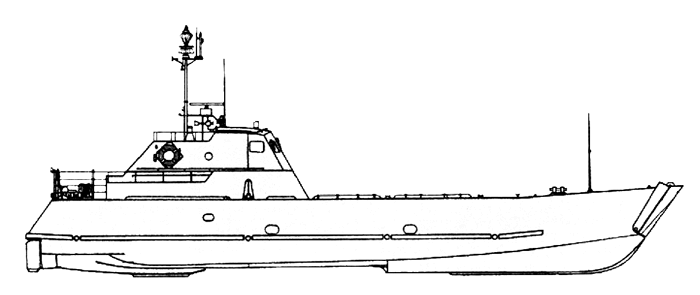

Air-Cavity Landing Craft - Project 11770
Air-Cavity Landing Craft - Project 11770


Modernizations

---


Fleets

Baltic Fleet: D-67, 1441, 1442
Black Sea Fleet: D-144, 199
Caspian Flotilia: D-56, 131, 156, 172, 179?
Pacific Fleet: D-107
Northern Fleet: D-178? (from 6.11.2013 Caspian Flotilia)


Hull Numbers

D-56: 634(2008), 721(2017)
D-67: 747(1996), 767(2016)
D-107: 650(2010)
D-131: 631(2004), 722(2016)
D-144: 575(2009), 665(2020)
D-156: 630(2002), 723(2017)
D-172: 645(2007), 724(2016)
D-178: 725(2018)
D-199: 544(2014), 659(2016)
D-1441: Kontr-admiral Demidov(28.05.2010), 613(2014), 791(2016)
D-1442: Kontr-admiral Olenin(28.05.2010), 616(2015), 792(2016)


Decommissioned

---


Export

United Arab Emirates: 3 units
Project 11771: ¹502 in 1994, ¹503 in 1994, ¹504 in 1995

Estonia: 1 unit
Project 11771 in 05.1995: patrol boat Tiir 104 (till 1994 - ¹501). 1x2 14,5 mm. From 25.11.2004 - civil boat without rename.
