Guard Ships
Project 20380
Project 20385

NATO: Steregushchy Class


Completed

5 + 9 units


Ships

Project 20380 - 5+5 units

Name
Yard ¹
Laid Down
Launched
Commissioned
Note
«Severnaya verf`», Sankt-Peterburg - 4+2 units
Steregushchyy
¹1001
21.12.2001
16.05.2006
14.11.2007

Soobrazitelnyy
¹1002
20.05.2003
31.03.2010
14.10.2011

Boikiy
¹1003
27.07.2005
15.04.2011
16.05.2013

Stoykiy
¹1004
10.11.2006
30.05.2012
18.07.2014

Retivyy
¹1007
20.02.2015
-
-

Strogiy
¹1008
20.02.2015
-
-

Amur Shipyard, Komsomolsk-on-Amur - 1+3 units
Sovershennyy
¹2101
30.06.2006
22.05.2015
20.07.2017

Gromkiy
¹2102
20.04.2012
28.07.2017
plan 10.2018
under construction
Geroy Rossiyskoy Federatcii Aldar Tcydenzhapov
¹2103
22.07.2015
-
plan 10.2019
under construction
Rezkiy
¹2104
1.07.2016
-
plan 2020
under construction

Project 20385 - 0+4 units

Name
Yard ¹
Laid Down
Launched
Commissioned
Note
«Severnaya verf`», Sankt-Peterburg - 0+2 units
Gremyaschiy
¹1005
26.05.2011
30.06.2017
plan 2018
under construction
Provornyy
¹1006
25.07.2013
-
-
under construction
Amur Shipyard, Komsomolsk-on-Amur - 0+2 units
-
¹2105
-
-
-
under construction
-
¹2106
-
-
-
under construction

Reclassified as corvettes


General characteristics - Project 20380

Displacement (tons):
Standard:1800
Full load:2100 (Project 20385 – 2300)
Dimensions (m):
Length:111,6 (Project20385 – 115,1)
Beam:14
Draft:3,7 (max – 5)
Speed (knots):27
Range:4000 nmi (14 knots)
Autonomy (days):15
Propulsion:2x11660 hp 1DDA-12000 diesels, 2 fixed pitch propellers (Project 20385 – 2 variable pitch propellers), 4x630 kW ADG-630K diesel generators
Armament:

2x4 KT-184 3K24 «Uran» anti-ship missile complex launchers (3M24 missiles, then 3M24UD) (Project 20385 – 1x8 3S14-20385 UKSK 3K14 vertical launchers («Kalibr-NK» guided missile complex)) (3M54T, 3M14T missiles), 3K55-20385 «Onyx» anti-ship missile complex (P-160 (3M55)) – 8 missiles)
3x4 SAM system 3K96-3 «Redut» launchers (32 9M96 or 9M96D missiles or 48 9M100 missiles) (¹1001 – 1 3M87-1 «Kortik-M» CIWS module – 8 SAM launchers, 2x6 30 mm (64 9M311 missiles, 12000 rounds)), Project 20385 – 4x43S97 SAM system 3K96 «Redut» vertical launchers (16 9M96 or 9M96D missiles or 64 9M100 missiles))
SAM system 9K38 «Igla» » (8 9M39 missiles)
1x1  100 mm A-190-01 – 5P-10-02 «Puma-02» fire control system (Project 20385 - without fire control system)
2x6 30 mm AK-630M-6 – MR-123-02 «Sfera» fire control system
1x1 45 mm 21KM – on Boikiy
2 14,5 mm
2x4 330 mm SM-588 «Paket-NK» launchers (8 MTT torpedoes, M-15 anti-torpedoes)
2x2 45 mm DP-64 grenade launchers (240 SG-45, FG-45 grenades)
1 Ka-27 helicopter

Electronics:

5P-20K-A «Monument-A» radar complex, 5P-27M «Furke-2» air/surface search radar, 2 «Sandal-V» radars, 2 MR-231-2 navigational radars, MR-231 navigation radar, MR-231-2 navigation radar, «PAL-N» navigation radar, TK-25-2 ESM radar system, 3 «Parol`» IFF, MTK-201M optical television system, «Zarya-2» sonar complex, «Minotavr-ISPN-M» sonar, «Anapa» GISZ, R-779-16 «Ruberoid» communication complex, «Chardal-20380» complex, MG-757 "Anapa-M" anti-saboteur sonar, «Sigma-20380» combat information system (¹1007, 1008, 2103, 2104 – «Sigma-20385-01»)
PK-10 «Smely» decoy RL (4 KT-216 launchers) – 80 AZ-SO-50, AZ-SR-50, AZ-SOM-50, AZ-SK-50, AZ-SMZ-50 rounds (Project 20385 – «Prosvet-M» complex (KT-308 launcher))

Complement:99 (14 officers)

Schematics

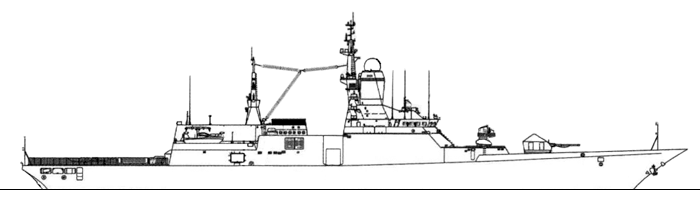

Guard Ship - Project 20380
Guard Ship - Project 20380


Modernizations

Non-realized updatings of the project: Project 20380M; Project 20380P - Board Guard Ship; Project 20382 Tigr - export variant; Project 20383 - Board Guard Ship, Project 20381, Project 20387


Fleets

Baltic Fleet: Boikiy, Steregushchiy, Soobrazitelnyy, Stoykiy
Pacific Fleet: Sovershennyy


Hull Numbers

Steregushchiy: 530(2006), 550(2016)
Soobrazitelnyy: 531(2011)
Boikiy: 532(2012)
Stoikiy: 545(2013)
Sovershennyy: 333(2016)


Decommissioned

---


Export

---
